215cc 2.050 x 1.600 1.550 Double Spring
64cc Combution Chamber Angled Plugs

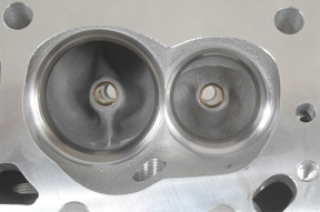

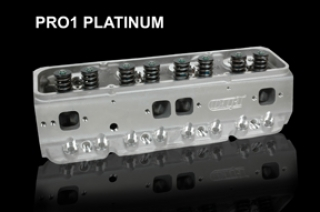

Dart's highly popular small-block Pro1 heads have been given the full Platinum treatment utilizing wet flow technology. Independant tests have demonstrated a typical 25 horsepower gain over the previous Pro1 design. The redesigned chamber features improved fuel distribution, spark plugs are located high and and as close to the center of the chamber as possible and five-angle intake seats shear the liquid fuel and air as it enters the chamber. The intake face, exhaust face and exhaust ports have been redesigned, valve guide bosses are profiled and casting walls are cleaner and more consistent, resulting in greater control over flow, heat and combustion. Four intake runner sizes are available (180, 200, 215 & 230cc) to suit engines from mild street to big-inch full competition.
PRO 1 heads can be used with off-the-shelf pistons, valvetrain components, and intake manifolds, making them an ideal choice for street/strip to all out competition applications.
|
