Brodix offers a wide range of aluminum cylinder heads depending on what your application is. Champion Racing Engines offers a large amount of Brodix cylinder heads to our customers that will work for any combination that you have.
If you do not see what you are looking for, just call us and we will be happy to assist in getting what you need.
Cylinder Head Series Listed Below
| IK Series | Race Rite | Track 1 |
| -8 -10 -11 | -10X -10RI | -11X |
| -12 | -15 | -16 |
| -18C | -18X | 12X12 |
| GB2000 | BD Series | Canted |
See information listed below on all small block cylinder heads.
**********

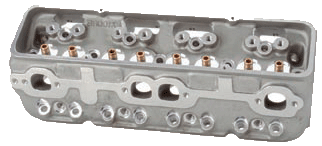

IK Series
| Part Number | IK 180 | IK 200 |
| Intake Port CC | 180cc | 200cc |
| Chamber Volume | 65cc / 70cc | 65cc / 70cc |
| Plug Angle | Straight | Straight |
| Application | Street | Pro Street |
| Bare Price Complete Price |
$716.95 Pair From $1161.95 Pair |
$716.95 Pair From $1055.95 Pair |
Price Subject To Change Without Notice
**********

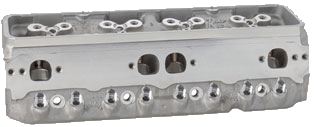

Race Rite Series
| Part Number | RR 180 | RR 200 |
| Intake Port CC | 180cc | 200cc |
| Chamber Volume | 67cc | 67cc |
| Plug Angle | Straight / Angle | Straight / Angle |
| Application | Street / Pro Street | Pro Street / Oval Track / Drag Race |
| Bare Price Complete Price |
$966.95 Pair From $1456.95 Pair |
$966.95 Pair From $1456.95 Pair |
Price Subject To Change Without Notice
**********

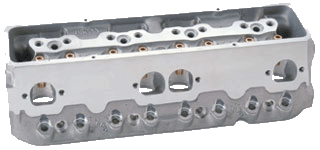

Track 1 Series
| Part Number | Track 1 | Track 1X | STS T1 215 | KC T1 227 |
| Intake Port CC | 221cc | 222cc | 215cc | 227cc |
| Chamber Volume | 67cc | 68cc | 68cc | 68cc |
| Plug Angle | Angle | Angle | Angle | Angle |
| Application | Oval, Drag, Pro Street | Oval, Bracket, Pro Street | Oval, Drag, Pro Street | Oval, Drag |
| Bare Price Complete Price |
Call For Pricing |
Call For Pricing |
Call For Pricing | Call For Pricing |
Price Subject To Change Without Notice
**********
-8 -10 -11 Series
| Part Number | -8 Pro | -8 | -10 | -11 |
| Intake Port CC | 185cc | 194cc | 210cc | 220cc |
| Chamber Volume | 67cc | 67cc | 67cc | 67cc |
| Plug Angle | Straight / Angle | Straight / Angle | Straight / Angle | Angle |
| Application | Street, Pro Street | Short Oval, Bracket, Pro Street | Oval, Bracket, Pro Street | Long Oval, Bracket |
| Bare Price Complete Price |
$1470.00 Pair From $1795.00 Pair |
$1470.00 Pair From $2188.00 Pair |
$1470.00 Pair From $2188.00 Pair |
$1470.00 Pair From $2188.00 Pair |
Price Subject To Change Without Notice
**********
-10X -10RI Series
| Part Number | WP 10 SP RI | WP 10 SP X 231 | WP 10 SP X 233 | WP 10 SP X AP |
| Intake Port CC | 240cc | 231cc | 233cc | 230cc |
| Chamber Volume | 71cc | 69cc | 74cc | 65cc |
| Plug Angle | Angle | Angle | Angle | Angle |
| Application | Oval, Drag, Pro Street | Oval, Drag, Pro Street | Oval, Drag, Pro Street | Oval, Drag, Pro Street |
| Bare Price Complete Price |
$3500.00 Pair From $4449.00 Pair |
$3516.00 Pair From $4459.00 Pair |
$3516.00 Pair From $4459.00 Pair |
$4339.00 Pair From $5690.00 Pair |
Price Subject To Change Without Notice
**********

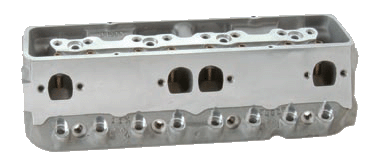

-11 X Series
| Part Number | 11 STD X | 11 SP X | KC 11 SP X |
| Intake Port CC | 225cc | 225cc | 231cc |
| Chamber Volume | 67cc | 67cc | 67cc |
| Plug Angle | Angle | Angle | Angle |
| Application | Oval, Drag | Oval, Drag | Oval, Drag |
| Bare Price Complete Price |
$1470.00 Pair From $2550.00 Pair |
$1470.00 Pair From $2550.00 Pair |
$2375.00 Pair From $2895.00 Pair |
Price Subject To Change Without Notice
**********

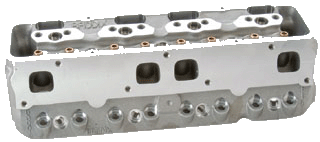

-12 Series
| Part Number | WP 12 SP RI | 12 SP B | 12 SP WP MC |
| Bare Price Complete Price |
$2660.00 Pair From $3169.00 Pair |
$2625.00 Pair From Call For Pricing |
$2660.00 Pair From $3169.00 Pair |
Price Subject To Change Without Notice
**********

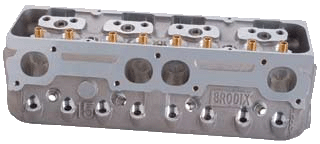

-15 Series
| Part Number | WP 15 SP |
| Intake Port CC | 267cc |
| Chamber Volume | 51cc |
| Plug Angle | Angle |
| Application | Oval, Drag |
| Bare Price Complete Price |
$3935.00 Pair From $4885.00 Pair |
Price Subject To Change Without Notice
**********
-16 Series
| Part Number | KC 16 STD |
| Intake Port CC | 268cc |
| Chamber Volume | 49cc |
| Plug Angle | Angle |
| Application | Oval, Drag |
| Bare Price Complete Price |
$3935.00 Pair From $4885.00 Pair |
Price Subject To Change Without Notice
**********

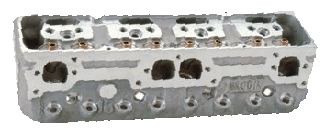

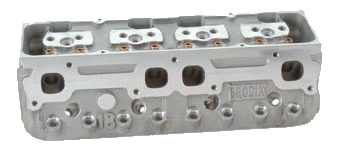

-18C Series
| Part Number | 18 SP | 18 STD C | WP 18 SP C | KC 18 SP C | WP 18 SC C AP |
| Intake Port CC | 185cc | 185cc | 254cc | 254cc | 266cc |
| Chamber Volume | 40cc | 40cc | 56cc | 56cc | 57cc |
| Plug Angle | Angle | Angle | Angle | Angle | Angle |
| Application | Oval, Drag | Oval, Drag | Oval, Drag | Oval, Drag | Oval, Drag |
| Bare Price Complete Price |
$1699.00 Pair Call For Pricing |
$1718.00 Pair Call For Pricing |
$3940.00 Pair From $4835.00 Pair |
$3705.00 Pair From $4641.00 Pair |
$4760.00 Pair From $5660.00 Pair |
Price Subject To Change Without Notice
**********
-18X Series
| Part Number | 18 STD X | 18 SP X | STS 18 STD X | STS 18 SP X |
| Bare Price Complete Price |
$1575.00 Pair From $2605.00 Pair |
$1516.00 Pair From $2560.00 Pair |
$2709.00 Pair From $3445.00 Pair |
$2662.00 Pair From $3589.00 Pair |
Price Subject To Change Without Notice
**********

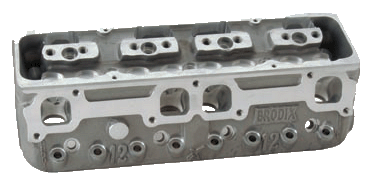

12X12 Series
| Part Number | WP 12X12 B -275 | WP 12X12 B -286 | WP 12X12 B -296 | WP 12X12 SP RP |
| Intake Port CC | 275cc | 286cc | 296cc | 299cc |
| Chamber Volume | 67cc | 67cc | 67cc | 67cc |
| Plug Angle | Angle | Angle | Angle | Angle |
| Application | Oval, Drag | Oval, Drag | Oval, Drag | Oval, Drag |
| Bare Price Complete Price |
$2606.00 Pair From $3105.00 Pair |
$2606.00 Pair From $3105.00 Pair |
$2606.00 Pair From $3105.00 Pair |
$1947.00 Pair Call For Pricing |
Price Subject To Change Without Notice
**********
GB2000 Series
| Part Number | GB2000 | WP GB 2200 | WP GB 2300 | WP GB 2400 |
| Intake Port CC | 286cc | 282cc | 309cc | 325cc |
| Chamber Volume | 76cc | 69cc | 49cc | 53cc |
| Plug Angle | Angle | Angle | Angle | Angle |
| Application | Oval, Drag | Oval, Drag | Oval, Drag | Oval, Drag |
| Bare Price Complete Price |
$1900.00 Pair From $3225.00 Pair |
$5255.00 Pair Call For Pricing |
$5255.00 Pair Call For Pricing |
$4890.00 Pair Call For Pricing |
Price Subject To Change Without Notice
**********
BD Series
| Part Number | WP BD 2000 | WP BD 1010 |
| Intake Port CC | 285cc | 299cc |
| Chamber Volume | 74cc | 64cc |
| Plug Angle | Angle | Angle |
| Application | Oval, Drag, Pro Street | Oval, Drag, Pro Street |
| Bare Price Complete Price |
$2450.00 Pair Call For Pricing |
$2450.00 Pair Call For Pricing |
Price Subject To Change Without Notice
**********

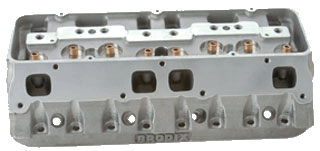

Canted Series
| Part Number | CV SP 265 | CV SP 330 |
| Intake Port CC | 265cc | 330cc |
| Chamber Volume | 54cc | 54cc |
| Plug Angle | Angle | Angle |
| Application | Oval, Drag | Oval, Drag |
| Bare Price Complete Price |
$2260.00 Pair Call For Pricing |
$2260.00 Pair Call For Pricing |
Price Subject To Change Without Notice
